Cam Spray Model UVJ4050V-Hot Trailer Mount Hot Water Sewer and Drain Jetter

$8,529.00North American Factory Direct

  • The power of 4000 psi, 5 gpm with 160 degree water!
  • Designed to be pulled behind a truck, Mule, Gator or Ranger and is excellant for facility maintenance.
  • 250' x 3/8" jet hose with 4 nozzle kit and tip cleaner.
  • Tool Box with gloves, face shield and safety vest.

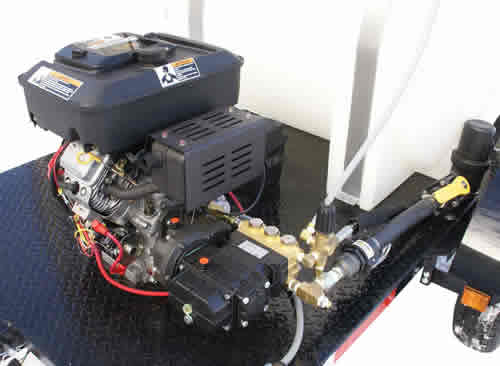

  • Industrial Electric Start Briggs and Stratton 480cc Engine with key switch, throttle and low oil shutdown
  • Gear Box direct drive pump with pulse feature, ceramic plungers and stainless valves.
  • 2" ball hitch and removeable/retractable tongue adjusts to three different levels.
  • 80 mesh large volume strainer.
  • Adjustable pressure unloader valve
  • Adjustable Thermostat and pressure pop-off
  • Choose between a 100' x 3/8" pressure hose on manual reel or 150' x 5/8" garden hose for tank refill.
  • Trigger Gun with 36" wand for wash down.
  • Quick change tips in 0°,15°,25° and 40°
  • Powder coat frame and trailer.
  • 130 gallon water tank with auto shut off float, shuts machine down when dry.
  • Trailer has full diamond plate deck, lights and is road ready with 13" wheels, 2000# axle.
  • Schedule 80 coil with cold wrap
  • Oil fired burner uses diesel fuel or kerosene to achieve a average temperature of 180° fahrenheit.
  • 9 gallon fuel tanks.
  • Call 800-648-5011 for a freight quote.
Product Features:
  • Product Dimensions : 0.0" x 60" x 48"
  • Engine Manufacturer : Briggs and Stratton Vanguard
  • Horsepower : 480cc
  • Operating Pressure in psi/bar : 4000 / 276
  • Flow Rate in gpm/lpm : 5 /19
  • Maximum Pump Inlet Water Temperature : 160 Degrees
  • Hose Dimension : 250' x 3/8"
  • Engine Fuel Tank Capacity : 9 Gallon
  • Burner Fuel Tank Capacity : 9 Gallon
  • Burner Fuel Type : Kerosene, #1 or #2 Diesel
  • Water Tank Capacity in U.S. Gallons : 130 Gallons
  • Jetter Hose Reel Type : Manual

Quantity:




Download a catalog page


Product Images:
Cam Spray Model UVJ4050V-Hot Trailer Mount Hot Water Sewer and Drain Jetter
Click to enlarge
Cam Spray Model UVJ4050V-Hot Trailer Mount Hot Water Sewer and Drain Jetter
Click to enlarge
Related Files:
Specification Sheet
