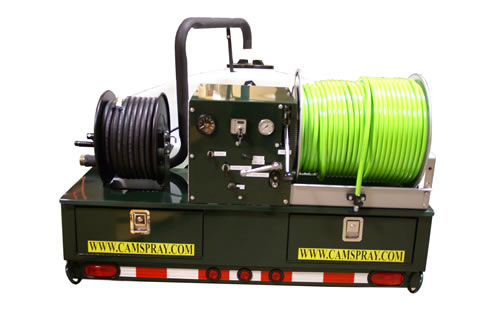

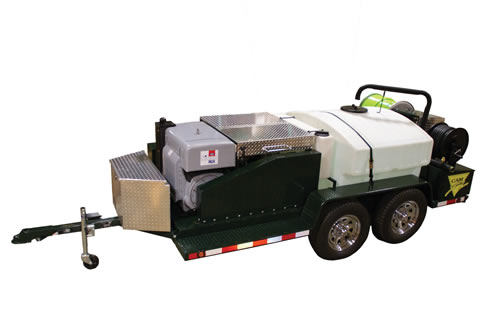

Cam Spray Trailer Mounted Gas Powered Sewer and Drain Jetter

[STB4018DT]

18 gallons per minute at 4000 PSI
Belt drive triplex plunger pump with ceramic plungers and stainless valves
500' x 1/2" hose on Hydraulic Reel with Variable speed
18 Gallon Anti Freeze Tank
300 Gallon Water Tank with Low Water Shut Off
Electric Controlled Power pulse feature
49 h.p. Hatz Silent Pack Diesel with electric start and rear mount throttle
Pressure gauge
80 mesh inlet water strainer
Pumps handle fluids up to 140°
Tandem Axle Trailer with Electric Brakes has powder coat finish and 15" chrome wheels
150' garden hose on manual reel
Lockable tool and storage boxes front and rear of trailer
Hour meter
50' wash down hose with trigger gun and wash nozzles
Tool box with gloves, face shield, nozzle kit, 4 nozzle cleaner and safety vest
Diamond plate protective cover over pump/engine
2" Hydrant Fill
Safety Stobe Light and Tiger Tail
Call 1-800-648-5011 for a freight quote.

Product Features:

• Engine Manufacturer : Hatz Diesel Silent Pack
• Horsepower : 49
• Operating Pressure in psi/bar : 4000 / 272
• Flow Rate in gpm/lpm : 18 / 68.4
• Maximum Pump Inlet Water Temperature : 140 degrees
• Hose Dimension : 500\' x 1/2
• Engine Fuel Tank Capacity : 25
• Water Tank Capacity in U.S. Gallons : 300
• Jetter Hose Reel Type : Hydraulic w/speed control

Product Images:

Click to enlarge

Related Files:

Specification Sheets
