Compact Skid Mount Gas Powered 12 gpm, 3000 psi Cold Water Sewer and Drain Jetter

Click image to enlarge
Quantity:

Model Number: P00567 3012H Compact Skid Mount

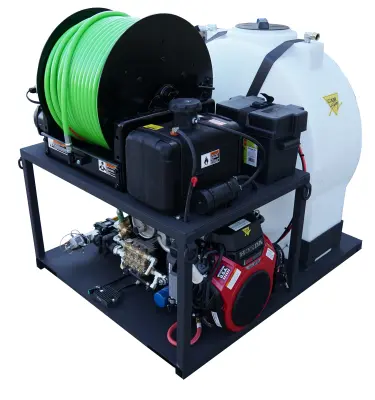

The P00567 3012 Compact Skid Jetter is designed to go into a Van or pick up bed and take up as little space possible and still flowing 12 gpm@ 3000 psi. Features include a Honda iGX 800 Fuel Injected gasoline engine with oil alert and hour meter, powering a gearbox driven plunger pump with ceramic plungers, stainless steel valves, pressure gauge and 80- mesh water filter. Pump is protected by unloader valve, secondary pop-off. Power Pulse feature for navigating longer runs and elbows. 100 Gallon Tank includes low water shut off and a float vave to manage filling the tank. Industrial coated skid platform and frame offers transferability between vans, trucks and trailers, mounting flanges and D rings allow for the machine to be fastened or tied down. Frame provides protection and rigidity and is industrial coated tube and plate steel. DC powered Reel with 400' x 1/2" hose and  includes a milling and bullet nozzle with storage box and tip cleaner, Tool Box, gloves, backflow preventer and safety glasses, 50' wash down hose and trigger gun for washing.
Machine measures 52" L x 41.5" W x 48" T

CLICK LOGO FOR FINANCING
logoBYtag

P00567 3012H Compact Skid Mount Product Specifications

  • Pressure in PSI / Bar: 3000
  • Flow Rate in GPM / LPM: 12 / 45.6
  • Water Type: Cold
  • Engine Manufacturer: Honda
  • Engine Fuel Tank Capacity: 5 Gallon
  • Ship Weight: 500
  • Powered By: Honda Gas Engine
  • Horsepower: 800 cc Fuel Injected
  • Hose Dimension: 400' x 1/2"
  • Hose Reel Type: DC 12V
  • Mounting Type: Skid
  • Water Tank Capacity in US Gallons: 100
  • Product Dimensions: 52" x 41.5" x 48"
  • Pump Thermal Protection: Mechanical
  • Max Pump Inlet Water Temp: 160° F
