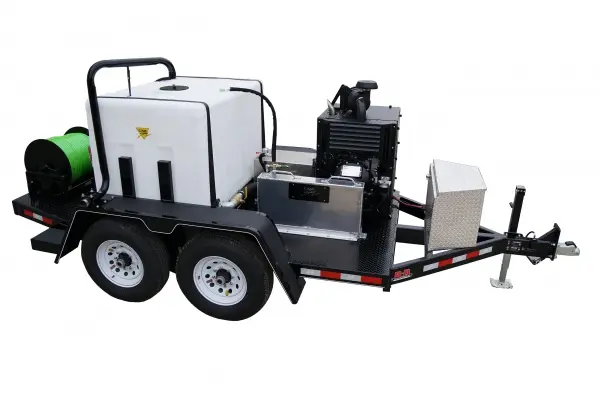

Deluxe Trailer Mounted Diesel Powered 18 gpm, 4000 psi Cold Water Sewer and Drain Jetter

Click image to enlarge
Quantity:

Model Number: TT4018HZ4-375

  • https://youtu.be/NySB48KLrDMHatz 4H50 4 cylinder 74 h.p. intercooled turbo diesel engine with engine enclosure is equipped with an over center clutch, four belt drive system powering a three plunger industrial pump with stainless steeel valves and ceramic plungers producing 18 gallons per minute flow at 4000 psi.
  • Heavily constructed trailer with 2“ X 4” steel tube box frame, full diamond plate deck, electric brakes, DOT rated 7000# axles, road ready lights and wiring, industrial coated finish, pintel hitch or 2 5/16” ball hitch, hand crank jack stand, 16” 10 ply tires with 8 bolt hubs.
  • 26 gallon fuel tank gives you hours of run time on a single fill.
  • Air purge valve, 10 gallon anti-freeze tank and recirculation to the tank for freeze protection.
  • 375 gallon tank with 2 inch hydrant fill.
  • 500’ x 1/2” hose on a Hannay 6000 series Hydraulic Reel with speed control.
  • Standard accessories for the diesel powered sewer jetter include front mounted tool box, Bullet and Milling nozzle, storage box, a tiger tail, safety shield, rubber gloves, high visibility safety vest. Available accessories include a strobe light, 50’ wash down hose, trigger gun.
  • Large battery box and battery shut of contained in the front mounted tool box.
  • Dry weight is 5450 lbs.      ​

     CLICK THE VIDEO LINK BELOW  TO SEE THE VIDEO OF TT4018HZ4-350

           https://youtu.be/NySB48KLrDM

CLICK LOGO FOR FINANCING
logoBYtag

Features

  • 500’ x 1/2” hose on a 3 position Hannay 6000 series Hydraulic Reel

TT4018HZ4-375 Product Specifications

  • Water Type: Cold
  • Powered By: Diesel Engine
  • Mounting Type: Trailer
  • Flow Rate in GPM / LPM: 18 / 68.4
  • Horsepower: 74 Turbo Intercooled
  • Product Dimensions: 213"L x 87.5"W x 77"T
  • Pump Thermal Protection: Mechanical
  • Max Pump Inlet Water Temp: 160° F
  • Hose Dimension: 500' x 1/2"
  • Ship Weight: 5450
  • Water Tank Capacity in US Gallons: 375
  • Engine Manufacturer: Hatz 4H50
  • Engine Fuel Tank Capacity: 26 Gallons
  • Hose Reel Type: Hydraulic w/speed control
  • Pressure in PSI / Bar: 4000 / 272
