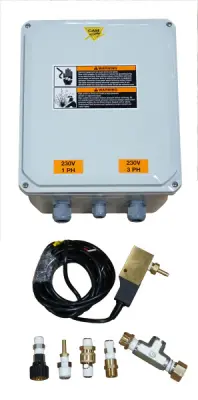

Auto Start-Stop Kit 2 hp to 10 hp single and three phase

The P00902 Time Delay / Auto Start-Stop system can be added to any existing Industrial pressure washer with a 2 hp to 10 hp motor, either single-phase or 3-phase.  MUST BE INSTALLED BY A QUALIFIED CERTIFIED ELECTRICIAN

How It Works:

• To activate the system, simply push the green button on the control box.
• The pressure washer will start when the trigger gun is pulled and will continue running while the gun is in use.
• When the trigger gun is released, a timer will begin counting down for approximately 1 minute.
  • If the trigger is pulled again within that time, the pressure washer will remain running.
  • If the trigger is not pulled in time, the machine will automatically shut down.
• To resume washing, simply pull the trigger again.
• For safety, we recommend turning off the control box after each use to prevent accidental starting of the pressure washer.

Installation Note:
A qualified, licensed electrician should install the P00902 Time Delay / Auto Start-Stop system. Please note that this control box and switch are not explosion-proof.

Key Features:

• Auto Start-Stop Functionality: Automatically powers off the pressure washer when the trigger gun is released and water flow stops. The system powers the washer back on once the trigger gun is pulled again.
• Compatible with electric-powered cold water pressure washers ranging from 2 hp to 10 hp.
