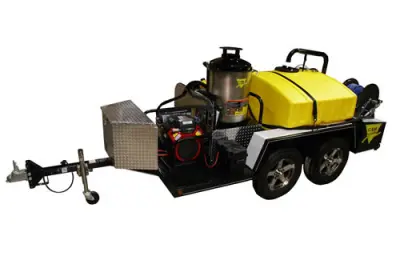

Deluxe Trailer Mounted Diesel Fired Gas Powered 5.5 gpm, 5000 psi Hot Water Pressure Washer

Click image to enlarge

Model Number: CBG5055HT

Cam Spray hot water power washer trailers are the best in the industry. These models are right at in the worst applications you can find. Features include an 700cc Honda EFI industrial gas powered engine and triplex direct drive plunger pump with ceramic plungers and stainless steel valves is equipped with low pressure chemical injection and system is protected by unloader valve and secondary pressure pop off. Burner system includes a rust free fuel tank, schedule 160 coil with stainless steel wrap, is controlled by an adjustable thermostat and temperature limit switch for a maximum temperature 195° F. The trailer is road ready trailers and are equipped with electric brakes, tail lights and turn signals, 15" wheels and twin 3500# axles. Aluminum tool box on trailer tongue and Tool Storage under reels on rear of trailer. Equipped with 100' hose and heavy duty trigger gun with a dual wand with side handle valve allows for user to switch from high pressure cleaning to detergent application and is equipped with quick change 0°,15°,25° and 40° nozzles. 150' garden hose on manual reel and hydrant fill for filling the 300 gallon tank. Group 24 battery not included and is available at any local auto parts store.

CBG5055HT Product Specifications

  • Water Type: Hot
  • Powered By: Gas Engine
  • Mounting Type: Trailer
  • Flow Rate in GPM / LPM: 5.5 / 20.9
  • Horsepower: 700cc
  • Product Dimensions: 186" x 74" x 72"
  • Pump Thermal Protection: Mechanical
  • Max Pump Inlet Water Temp: 140° F
  • Hose Dimension: 100' x 3/8"
  • Ship Weight: 3200
  • Water Tank Capacity in US Gallons: 300
  • Engine Manufacturer: Honda
  • Engine Fuel Tank Capacity: 9 Gallon
  • Heated By: Diesel Fuel
  • Burner Fuel Tank Capacity: 9 Gallon
  • Burner Fuel Type: Diesel Fuel
  • Burner Stack Dimension: 8"
  • Pressure in PSI / Bar: 5000 / 345
