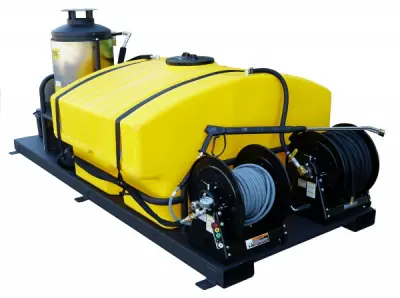

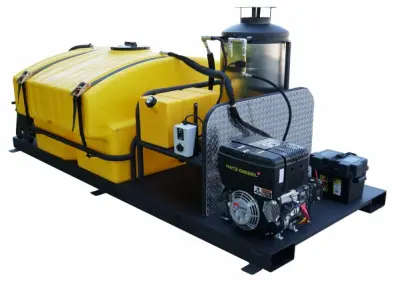

Deluxe Skid Mounted Diesel Fired Diesel Powered 4 gpm, 3000 psi Hot Water Pressure Washer

Click image to enlarge
Quantity:

Model Number: 3040TMD-Hot-P00427

Cam Spray truck mount diesel hot water power washers are the best in the industry. These models are right at home in the worst applications you can find. Features include a Hatz Diesel industrial air cooled diesel engine and triplex plunger pump with ceramic plungers and stainless steel valves  is protected by unloader valve and secondary pressure pop off. Burner system includes a rust free fuel tank, schedule 80 coil with stainless steel wrap, is controlled by an adjustable thermostat and temperature limit switch for a maximum temperature 195° F. The skid is ready to be mounted on a flat bed truck or trailer and is equipped with heavy duty trigger gun with a dual wand with side handle valve that allows for user to switch from high pressure cleaning to detergent application and is equipped with quick change 0°,15°,25° and 40° nozzles. Group 24 battery it included.

3040TMD-Hot-P00427 Product Specifications

  • Water Type: Hot
  • Powered By: Diesel Engine
  • Mounting Type: Skid
  • Flow Rate in GPM / LPM: 4 / 15.2
  • Horsepower: 19.9 / 14.6 kw
  • Product Dimensions: 132" x 60" x 60"
  • Pump Thermal Protection: Mechanical
  • Max Pump Inlet Water Temp: 140° F
  • Hose Dimension: 100' x 3/8"
  • Ship Weight: 1500
  • Water Tank Capacity in US Gallons: 300
  • Engine Manufacturer: Hatz Diesel
  • Engine Fuel Tank Capacity: 9 Gallon
  • Heated By: Diesel Fuel
  • Burner Fuel Tank Capacity: 9 Gallon
  • Burner Fuel Type: Diesel Fuel
  • Burner Stack Dimension: 8"
  • Pressure in PSI / Bar: 3000 / 207

Pressure Washer
Our American made pressure washers and drain jetters are built the old-fashioned way: one at a time and tested by hand
